Binomial Queue

约 626 个字 93 行代码 6 张图片 预计阅读时间 5 分钟

Definition

A binomial queue is not a heap-ordered tree, but rather a collection of heap-ordered trees, known as a forest.(森林) Each heap-ordered tree is a binomial tree.

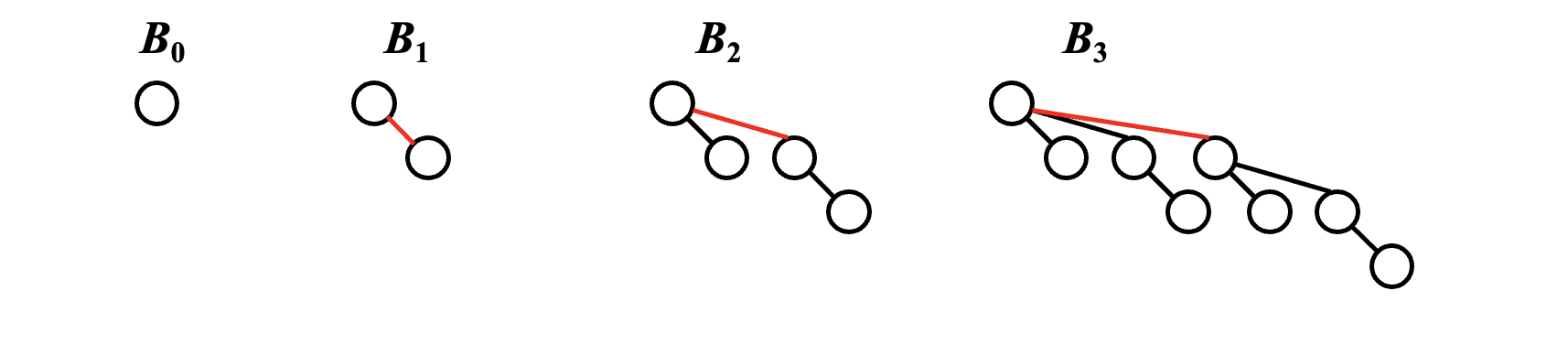

递归定义

A binomial tree of height 0 is a one-node tree.
A binomial tree, \(Bk\), of height \(k\) is formed by attaching a binomial tree, \(B_{k–1}\), to the root of another binomial tree, \(B_{k–1}\).

性质

Bk consists of a root with \(k\) children, which are \(B_0, B_1, B_2, \cdots , B_{k-1}\). \(B_k\) has exactly \(2^k\) nodes. The number of nodes at depth \(d\) is \(\binom{k}{d}\).

A priority queue of any size can be uniquely represented by a collection of binomial trees. 因为每个数都可以转换成唯一的二进制数。

实现：使用指针数组，每个指针指向一个Binomial Queue.

Operation

FindMin

The minimum key is in one of the roots. There are at most \(\lceil \log N \rceil\) roots, hence \(T_p = O(\log n)\).

Warning

但是我们有快速操作。We can remember the minimum and update whenever it is changed. Then this operation will take \(O(1)\).

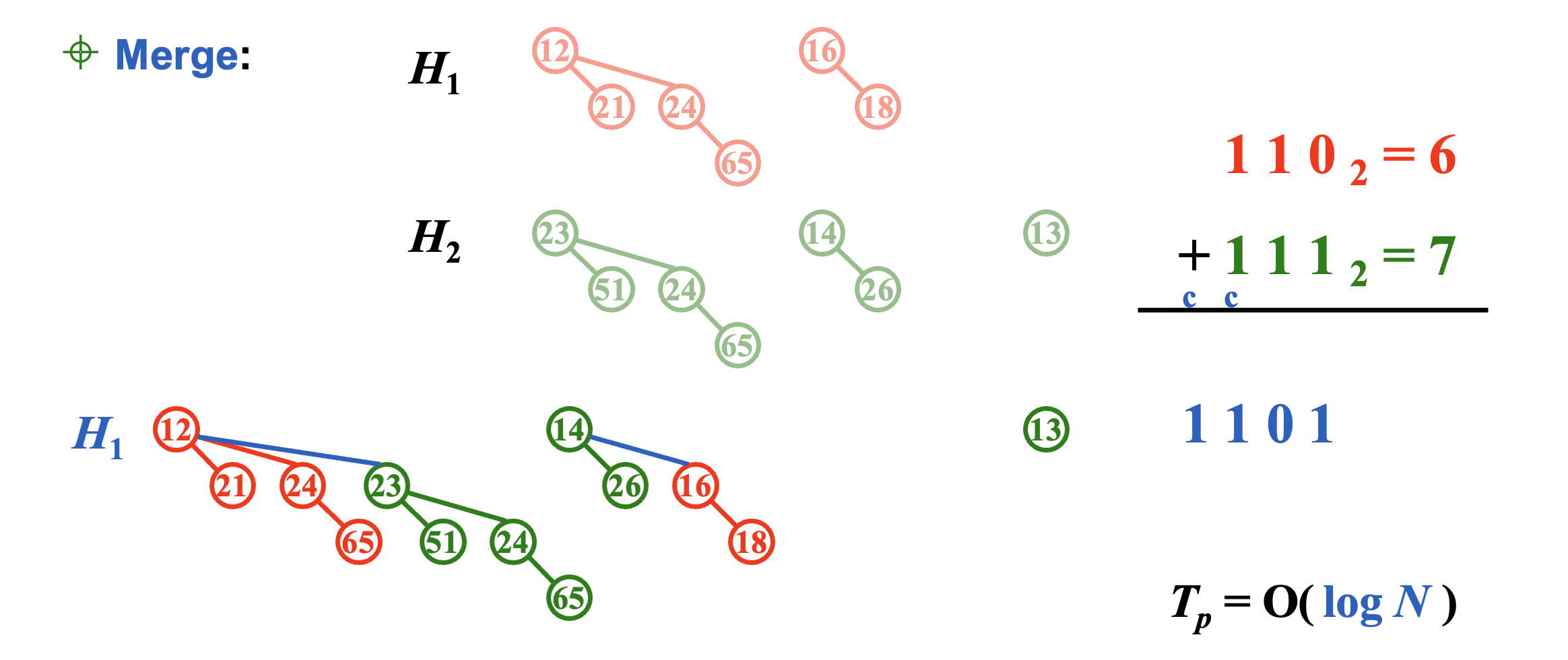

Merge

复杂度就是进行加法的位数。

Tip

对于一个十进制数，要确定其转换成二进制后有多少位，可以通过以下步骤进行计算：

设十进制数为 \( N \)，那么它转换成二进制后的位数 \( L \) 可以通过以下公式计算：

\[ L = \lfloor \log_2{N} \rfloor + 1 \]

其中 \( \lfloor x \rfloor \) 表示向下取整。

Insert

注意

单次Insertion可以看作是一次特殊的merge，单次复杂度是\(O(\log n)\)。但是这并不意味着从空开始insert n 次复杂度是\(O(n\log n)\)，通过均摊分析可知是\(O(n)\)。

DeleteMin

Decrease Key

Implementation

Binomial queue = array of binomial trees

Operation	Property	Solution
DeleteMin	Find all the subtrees quickly	Left_child_next_sibling with linkes lists
Merge	The children are ordered by their sizes	The new tree will be the largest. Hence maintain the subtrees in decreasing sizes.

typedef struct BinNode *Position;
typedef struct Collection *BinQueue;
typedef struct BinNode *BinTree;  /* missing from p.176 */

struct BinNode
{
    ElementType Element;
    Position LeftChild;
    Position NextSibling;
} ;

struct Collection
{
    int CurrentSize;  /* total number of nodes */
    BinTree TheTrees[ MaxTrees ];
} ;

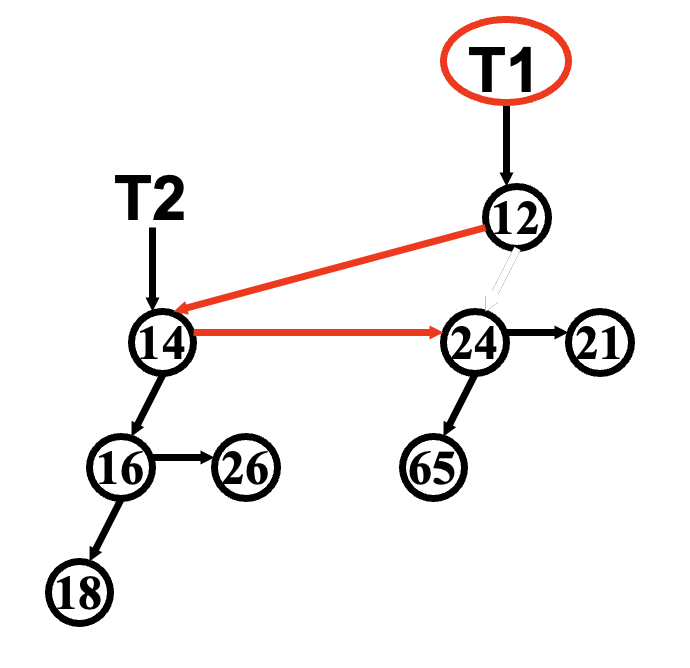

BinTree CombineTrees( BinTree T1, BinTree T2 )
{  /* merge equal-sized T1 and T2 */
    if ( T1->Element > T2->Element )
        /* attach the larger one to the smaller one */
        return CombineTrees( T2, T1 );
    /* insert T2 to the front of the children list of T1 */
    T2->NextSibling = T1->LeftChild;
    T1->LeftChild = T2;
    return T1;
}

BinQueue Merge( BinQueue H1, BinQueue H2 )
{   BinTree T1, T2, Carry = NULL;
    int i, j;
    if ( H1->CurrentSize + H2-> CurrentSize > Capacity )  ErrorMessage();
    H1->CurrentSize += H2-> CurrentSize;
    for ( i = 0, j = 1; j <= H1->CurrentSize; i++, j*=2 ) {
        T1 = H1->TheTrees[i]; T2 = H2->TheTrees[i]; /* current trees */
        switch( 4*!!Carry + 2*!!T2 + !!T1 ) { // 将操作数变为0和1
        case 0: /* 000 */
        case 1: /* 001 */  break;
        case 2: /* 010 */  H1->TheTrees[i] = T2;
                           H2->TheTrees[i] = NULL;
                           break;
        case 4: /* 100 */  H1->TheTrees[i] = Carry;
                           Carry = NULL;
                           break;
        case 3: /* 011 */  Carry = CombineTrees( T1, T2 );
                           H1->TheTrees[i] = H2->TheTrees[i] = NULL;
                           break;
        case 5: /* 101 */  Carry = CombineTrees( T1, Carry );
                           H1->TheTrees[i] = NULL;
                           break;
        case 6: /* 110 */  Carry = CombineTrees( T2, Carry );
                           H2->TheTrees[i] = NULL;
                           break;
        case 7: /* 111 */  H1->TheTrees[i] = Carry;
                           Carry = CombineTrees( T1, T2 );
                           H2->TheTrees[i] = NULL;
                           break;
        } /* end switch */
    } /* end for-loop */
    return H1;
}

ElementType  DeleteMin( BinQueue H ) {
    BinQueue DeletedQueue;
    Position DeletedTree, OldRoot;
    ElementType MinItem = Infinity;  /* the minimum item to be returned */
    int i, j, MinTree; /* MinTree is the index of the tree with the minimum item */

    if ( IsEmpty( H ) )  {
        PrintErrorMessage();
        return –Infinity;
    }

    for ( i = 0; i < MaxTrees; i++) {  /* Step 1: find the minimum item */
        if( H->TheTrees[i] && H->TheTrees[i]->Element < MinItem ) {
        MinItem = H->TheTrees[i]->Element;  MinTree = i;
        } /* end if */
    } /* end for-i-loop */

    DeletedTree = H->TheTrees[ MinTree ];
    H->TheTrees[ MinTree ] = NULL;   /* Step 2: remove the MinTree from H => H’ */
    OldRoot = DeletedTree;   /* Step 3.1: remove the root */
    DeletedTree = DeletedTree->LeftChild;   free(OldRoot);
    DeletedQueue = Initialize();   /* Step 3.2: create H” */
    DeletedQueue->CurrentSize = ( 1<<MinTree ) – 1;  /* 2MinTree – 1 */

    for ( j = MinTree – 1; j >= 0; j – – ) {
        DeletedQueue->TheTrees[j] = DeletedTree;
        DeletedTree = DeletedTree->NextSibling;
        DeletedQueue->TheTrees[j]->NextSibling = NULL;
    } /* end for-j-loop */

    H->CurrentSize  –= DeletedQueue->CurrentSize + 1;
    H = Merge( H, DeletedQueue ); /* Step 4: merge H’ and H” */
    return MinItem;
}

Tip

对照前面的原理图食用更佳（

Amortized analysis

第几次	操作成本
1	1
2	2
3	1
4	3
5	1
...	...

0出现的越早，所需的代价越小。

Potential method

定义势能函数

\[ \phi(i) = \text{number of trees after } i \text{th insertion} \]

过程：

\[ B_{k+1},\cdots, B_3, B_2, B_1, B_0 \]

\[ c_i = i + (k + 1) \]

\[ \hat{c}_i = i + (k + 1) + x + 1 - (x + k + 1) = 2 \]

所以：

\[ \sum_{i=1}^{N}{\hat{c_i}} = \sum_{i=1}^{N}{c_i} + \phi(i) - \phi(0) = 2N \]

\[ \sum_{i=1}^{N}{c_i} =2N - \phi(0) \leq 2N = O(N)\]

Accounting method

每一个节点内都有一个硬币。

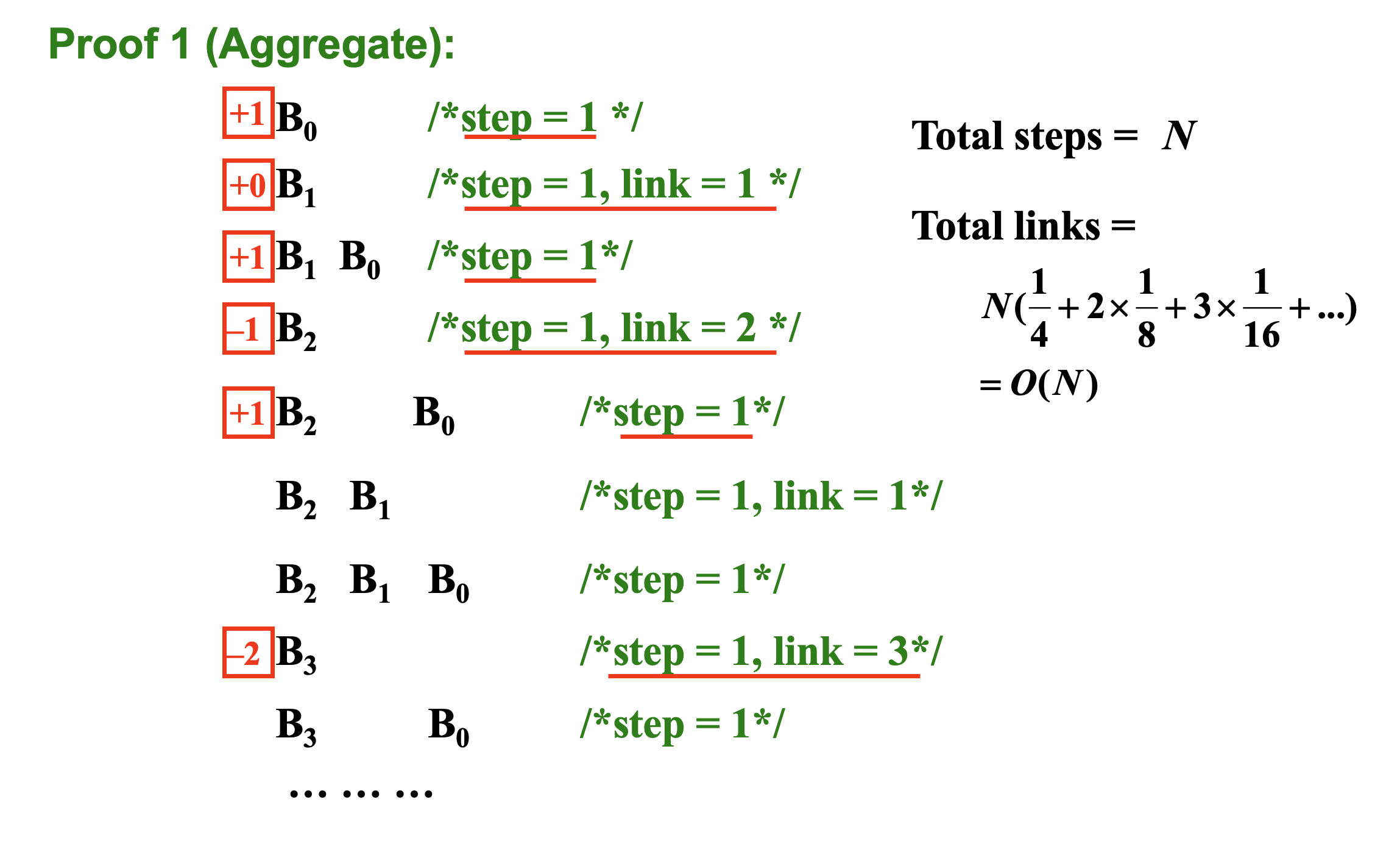

Aggregate analysis

各类堆的操作复杂度

Heaps:	Leftist	Skew	Binomial	Fibonacci	Binary	Link list
Make heap	\(O(1)\)	\(O(1)\)	\(O(1)\)	\(O(1)\)	\(O(1)\)	\(O(1)\)
Find-Min	\(O(1)\)	\(O(1)\)	\(O(1)\)	\(O(1)\)
Merge	\(O(\log n)\)	\(O(\log n)\)	\(O(\log n)\)		\(O(n)\)
Insert	\(O(\log n)\)	\(O(\log n)\)	\(O(\log n)\)	\(O(1)\)
Delete
Delete-Min	\(O(\log n)\)	\(O(\log n)\)
Decrease-Key			\(O(\log n)\)	\(O(1)\)
